Norsat 1108HDFF Ku波段雙頻PLL LNB
發布時間：2025-04-10 09:02:10 瀏覽：687
1108HDFF是Norsat公司生產的KU波段雙頻段鎖相環(PLL)低噪聲塊下變頻器(LNB)，適用于需要高增益和低噪聲的應用場景，特別是在衛星通信領域。
規格參數：
噪聲系數：典型值為0.8 dB，最大值為0.9 dB，適用于室溫下的冷前端(CF)。
本振(L.O.)穩定性：±10 kHz(在1 kHz處)，±25 kHz(在25 kHz處)。
相位噪聲(SSB)最大值：
-70 dBc 在1 kHz處
-80 dBc 在10 kHz處
-95 dBc 在100 kHz處
輸入電壓駐波比(VSWR)：最大2.3:1。
輸出電壓駐波比(VSWR)：最大2.3:1。
增益：典型值為60 dB，最小值為55 dB，最大值為65 dB。
增益平坦度：全頻段內±5 dB峰-峰值。
輸出三階截點(P1dB)：最小值+5 dBm。
頻率范圍：
頻段1(13V)：
頻率范圍：10.70 - 11.70 GHz
本振頻率：9.75 GHz
中頻(IF)頻率：950 - 1950 MHz
頻段2(18V)：
頻率范圍：11.70 - 12.75 GHz
本振頻率：10.60 GHz
中頻(IF)頻率：1100 - 2150 MHz
電源和電流：
直流電源：+12V至+24V直流電。
電流：最大350 mA。
物理特性：
輸入(防水)：WR-75波導凹槽。
輸出(防水)：
F型連接器(75 Ohm)
N型連接器(50 Ohm)
尺寸(長 x 寬 x 高)：128 mm x 60 mm x 42 mm(5.00英寸 x 2.36英寸 x 1.65英寸)。
重量：400 g(14.11 oz)。
工作溫度：-40至+60°C。
存儲溫度：-40至+80°C。

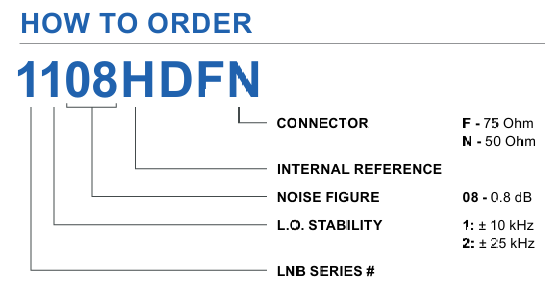

訂購信息：
相關型號：
| 2108FSAF | 2107FSAF | 2109FSAF | 2207FSAF | 2208FSAF | 2209FSAF | 2007FSAF | 2008FSAF | 2009FSAF |
| 2108DSAF | 2107DSAF | 2109DSAF | 2207DSAF | 2208DSAF | 2209DSAF | 2007DSAF | 2008DSAF | 2009DSAF |
| 2108TSAF | 2107TSAF | 2109TSAF | 2207TSAF | 2208TSAF | 2209TSAF | 2007TSAF | 2008TSAF | 2009TSAF |
| 2108USAF | 2107USAF | 2109USAF | 2207USAF | 2208USAF | 2209USAF | 2007USAF | 2008USAF | 2009USAF |
| 2108HSAF | 2107HSAF | 2109HSAF | 2207HSAF | 2208HSAF | 2209HSAF | 2007HSAF | 2008HSAF | 2009HSAF |
| 2108XSAF | 2107XSAF | 2109XSAF | 2207XSAF | 2208XSAF | 2209XSAF | 2007XSAF | 2008XSAF | 2009XSAF |
| 2108FAAF | 2107FAAF | 2109FAAF | 2207FAAF | 2208FAAF | 2209FAAF | 2007FAAF | 2008FAAF | 2009FAAF |
| 2108DAAF | 2107DAAF | 2109DAAF | 2207DAAF | 2208DAAF | 2209DAAF | 2007DAAF | 2008DAAF | 2009DAAF |
| 2108TAAF | 2107TAAF | 2109TAAF | 2207TAAF | 2208TAAF | 2209TAAF | 2007TAAF | 2008TAAF | 2009TAAF |
| 2108UAAF | 2107UAAF | 2109UAAF | 2207UAAF | 2208UAAF | 2209UAAF | 2007UAAF | 2008UAAF | 2009UAAF |
| 2108HAAF | 2107HAAF | 2109HAAF | 2207HAAF | 2208HAAF | 2209HAAF | 2007HAAF | 2008HAAF | 2009HAAF |
| 2108XAAF | 2107XAAF | 2109XAAF | 2207XAAF | 2208XAAF | 2209XAAF | 2007XAAF | 2008XAAF | 2009XAAF |
| 2108FBAF | 2107FBAF | 2109FBAF | 2207FBAF | 2208FBAF | 2209FBAF | 2007FBAF | 2008FBAF | 2009FBAF |
| 2108DBAF | 2107DBAF | 2109DBAF | 2207DBAF | 2208DBAF | 2209DBAF | 2007DBAF | 2008DBAF | 2009DBAF |
| 2108TBAF | 2107TBAF | 2109TBAF | 2207TBAF | 2208TBAF | 2209TBAF | 2007TBAF | 2008TBAF | 2009TBAF |
| 2108UBAF | 2107UBAF | 2109UBAF | 2207UBAF | 2208UBAF | 2209UBAF | 2007UBAF | 2008UBAF | 2009UBAF |
| 2108HBAF | 2107HBAF | 2109HBAF | 2207HBAF | 2208HBAF | 2209HBAF | 2007HBAF | 2008HBAF | 2009HBAF |
| 2108XBAF | 2107XBAF | 2109XBAF | 2207XBAF | 2208XBAF | 2209XBAF | 2007XBAF | 2008XBAF | 2009XBAF |
| 2108FCAF | 2107FCAF | 2109FCAF | 2207FCAF | 2208FCAF | 2209FCAF | 2007FCAF | 2008FCAF | 2009FCAF |
| 2108DCAF | 2107DCAF | 2109DCAF | 2207DCAF | 2208DCAF | 2209DCAF | 2007DCAF | 2008DCAF | 2009DCAF |
| 2108TCAF | 2107TCAF | 2109TCAF | 2207TCAF | 2208TCAF | 2209TCAF | 2007TCAF | 2008TCAF | 2009TCAF |
| 2108UCAF | 2107UCAF | 2109UCAF | 2207UCAF | 2208UCAF | 2209UCAF | 2007UCAF | 2008UCAF | 2009UCAF |
| 2108HCAF | 2107HCAF | 2109HCAF | 2207HCAF | 2208HCAF | 2209HCAF | 2007HCAF | 2008HCAF | 2009HCAF |
| 2108XCAF | 2107XCAF | 2109XCAF | 2207XCAF | 2208XCAF | 2209XCAF | 2007XCAF | 2008XCAF | 2009XCAF |
| 2108FDAF | 2107FDAF | 2109FDAF | 2207FDAF | 2208FDAF | 2209FDAF | 2007FDAF | 2008FDAF | 2009FDAF |
| 2108DDAF | 2107DDAF | 2109DDAF | 2207DDAF | 2208DDAF | 2209DDAF | 2007DDAF | 2008DDAF | 2009DDAF |
| 2108TDAF | 2107TDAF | 2109TDAF | 2207TDAF | 2208TDAF | 2209TDAF | 2007TDAF | 2008TDAF | 2009TDAF |
| 2108UDAF | 2107UDAF | 2109UDAF | 2207UDAF | 2208UDAF | 2209UDAF | 2007UDAF | 2008UDAF | 2009UDAF |
| 2108HDAF | 2107HDAF | 2109HDAF | 2207HDAF | 2208HDAF | 2209HDAF | 2007HDAF | 2008HDAF | 2009HDAF |
| 2108XDAF | 2107XDAF | 2109XDAF | 2207XDAF | 2208XDAF | 2209XDAF | 2007XDAF | 2008XDAF | 2009XDAF |
| 2108FEAF | 2107FEAF | 2109FEAF | 2207FEAF | 2208FEAF | 2209FEAF | 2007FEAF | 2008FEAF | 2009FEAF |
| 2108DEAF | 2107DEAF | 2109DEAF | 2207DEAF | 2208DEAF | 2209DEAF | 2007DEAF | 2008DEAF | 2009DEAF |
| 2108TEAF | 2107TEAF | 2109TEAF | 2207TEAF | 2208TEAF | 2209TEAF | 2007TEAF | 2008TEAF | 2009TEAF |
| 2108UEAF | 2107UEAF | 2109UEAF | 2207UEAF | 2208UEAF | 2209UEAF | 2007UEAF | 2008UEAF | 2009UEAF |
| 2108HEAF | 2107HEAF | 2109HEAF | 2207HEAF | 2208HEAF | 2209HEAF | 2007HEAF | 2008HEAF | 2009HEAF |
| 2108XEAF | 2107XEAF | 2109XEAF | 2207XEAF | 2208XEAF | 2209XEAF | 2007XEAF | 2008XEAF | 2009XEAF |
| 2108FFAF | 2107FFAF | 2109FFAF | 2207FFAF | 2208FFAF | 2209FFAF | 2007FFAF | 2008FFAF | 2009FFAF |
| 2108DFAF | 2107DFAF | 2109DFAF | 2207DFAF | 2208DFAF | 2209DFAF | 2007DFAF | 2008DFAF | 2009DFAF |
| 2108TFAF | 2107TFAF | 2109TFAF | 2207TFAF | 2208TFAF | 2209TFAF | 2007TFAF | 2008TFAF | 2009TFAF |
| 2108UFAF | 2107UFAF | 2109UFAF | 2207UFAF | 2208UFAF | 2209UFAF | 2007UFAF | 2008UFAF | 2009UFAF |
| 2108HFAF | 2107HFAF | 2109HFAF | 2207HFAF | 2208HFAF | 2209HFAF | 2007HFAF | 2008HFAF | 2009HFAF |
| 2108XFAF | 2107XFAF | 2109XFAF | 2207XFAF | 2208XFAF | 2209XFAF | 2007XFAF | 2008XFAF | 2009XFAF |
| 2108FGAF | 2107FGAF | 2109FGAF | 2207FGAF | 2208FGAF | 2209FGAF | 2007FGAF | 2008FGAF | 2009FGAF |
| 2108DGAF | 2107DGAF | 2109DGAF | 2207DGAF | 2208DGAF | 2209DGAF | 2007DGAF | 2008DGAF | 2009DGAF |
| 2108TGAF | 2107TGAF | 2109TGAF | 2207TGAF | 2208TGAF | 2209TGAF | 2007TGAF | 2008TGAF | 2009TGAF |
| 2108UGAF | 2107UGAF | 2109UGAF | 2207UGAF | 2208UGAF | 2209UGAF | 2007UGAF | 2008UGAF | 2009UGAF |
| 2108HGAF | 2107HGAF | 2109HGAF | 2207HGAF | 2208HGAF | 2209HGAF | 2007HGAF | 2008HGAF | 2009HGAF |
| 2108XGAF | 2107XGAF | 2109XGAF | 2207XGAF | 2208XGAF | 2209XGAF | 2007XGAF | 2008XGAF | 2009XGAF |
Norsat公司是通信解決方案的提供商，公司的產品線包括微波組件、便攜式衛星系統、海上解決方案、遠程網絡解決方案以及設備融資，Norsat的產品和解決方案廣泛應用于政府、軍隊、交通、資源和海洋產業等多個領域。深圳市立維創展科技有限公司，優勢代理銷售Norsat產品，歡迎咨詢。
